[Translate to English:] FOX IV 810

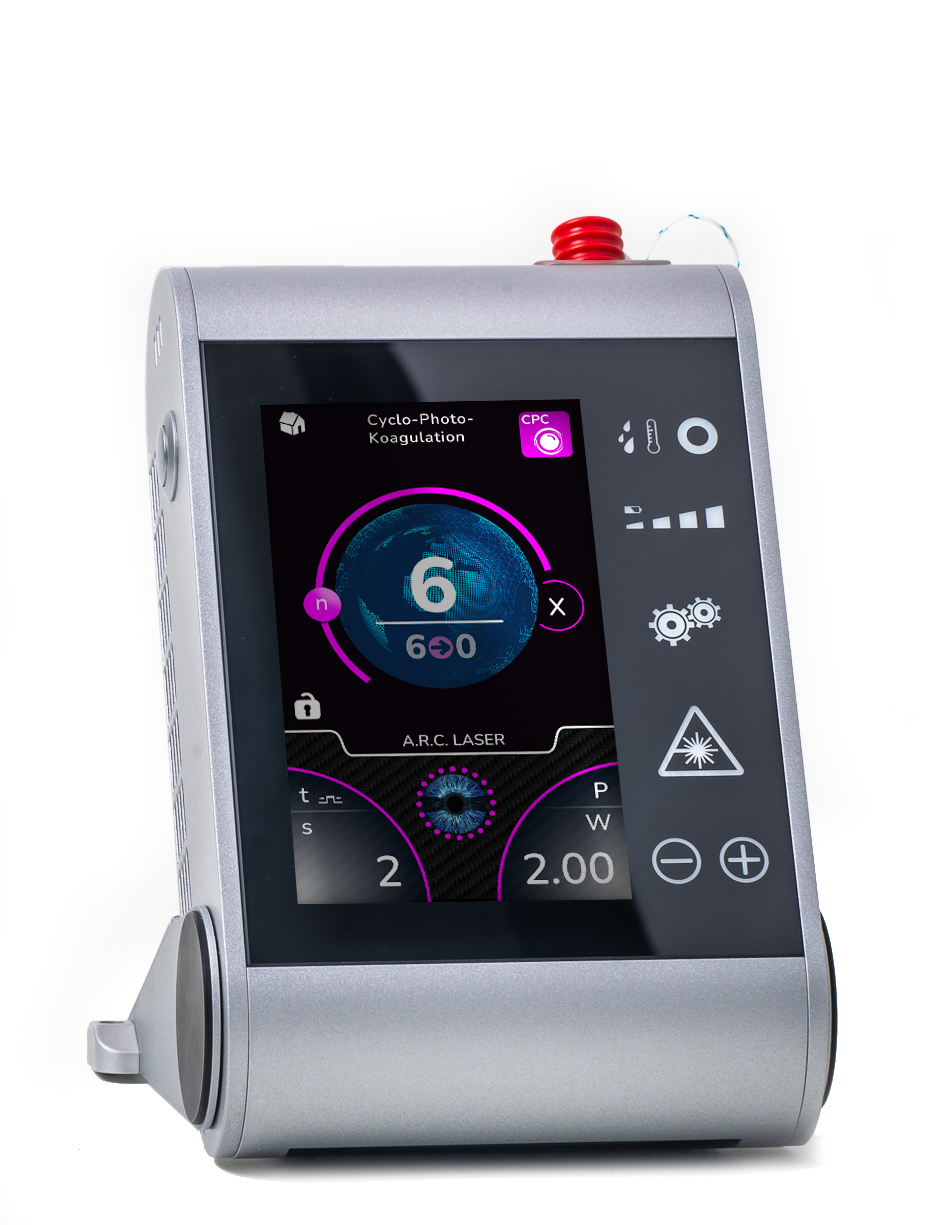

FOX IV 810:

The next generation of portable diode lasers from A.R.C. Laser

  • Large, user-friendly color touch display
  • High-quality metal housing (17.4 x 14.2 x 16.3 cm)
  • Portable and battery-operated, the FOX IV 810 comes with all the necessary accessories in a handy carrying case
  • A lightweight with only 1.53 kg

A true all-round talent: with the powerful 8 W, even the opening of bony structures is child's play with the TCL-DCR.

Special highlight: Patented design of our µCPC probe.

[Translate to English:] Energie & Zeit Display

FOX IV 810:

the ideal diode laser for glaucoma therapy

  • Time or energy meter?
    FOX IV 810 offers both options!
  • Speaking assistant!
    FOX IV 810 offers an adjustable voice output for the energy and time counter at intervals of 10J and 10s respectively
  • Always the right treatment speed!
    FOX IV 810 improves the handling of the µCPC with the metronome function: audio signal at intervals of 1J or 1s

videos

FOX IV 810:

Powerful and safe at the same time

  • Important application parameters are displayed in the central field of vision
  • User interface in application-specific color scheme
  • Strong, durable 810 nm wavelength diode with up to 8 watts of power

Elegant design meets user-friendly user interface

Patented Innovation

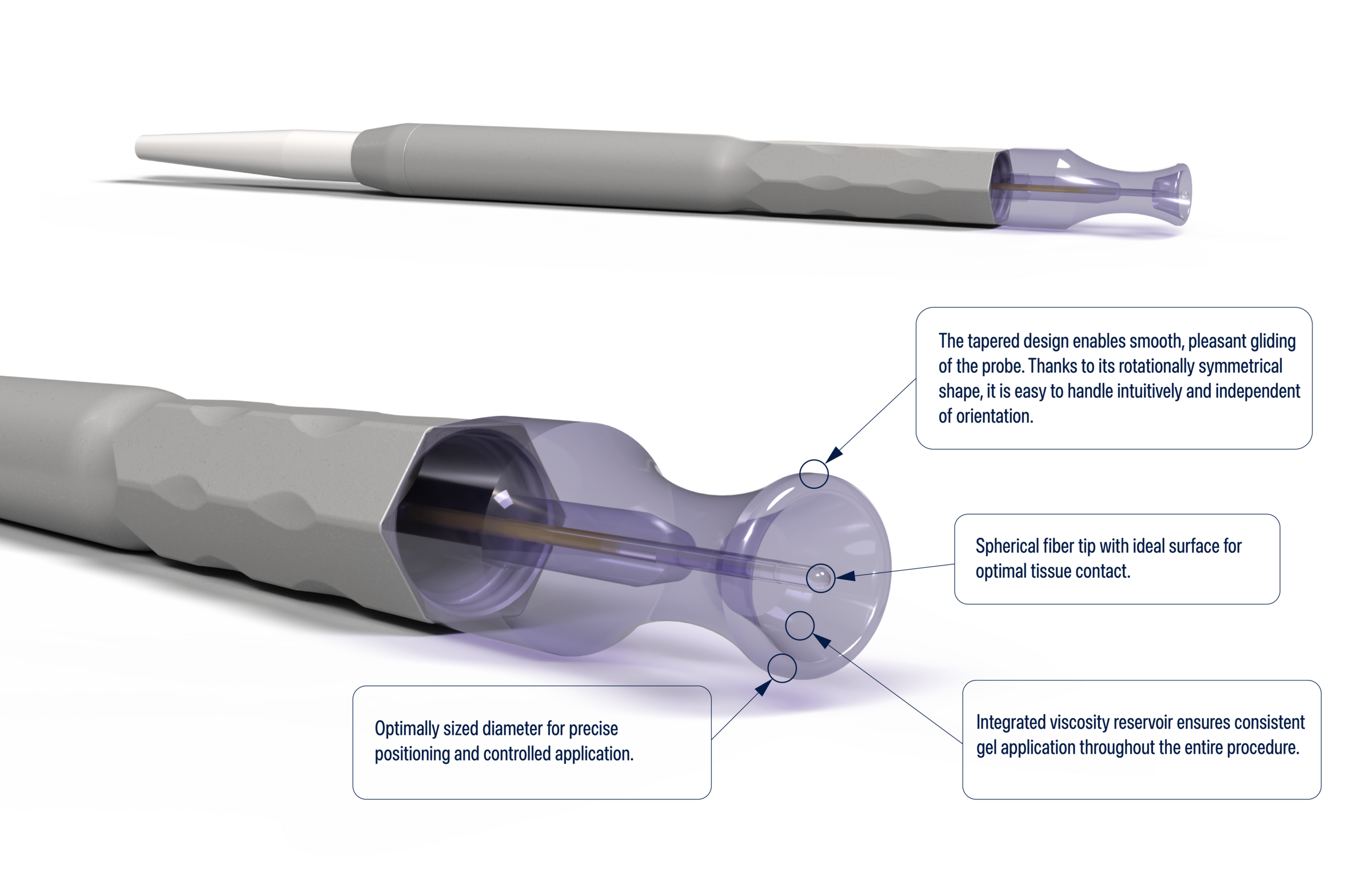

µCPC Probe

Patented technology for maximum precision

A major milestone for μCPC and our team: The innovative geometry of our μCPC probe tip is protected by several international patents.

Technical Features
Orientation-Independent
Easy Handling
Optimal Positioning
Perfect Control

Orientation-independent technology:

Unlike conventional probes, the μCPC probe allows comfortable handling without any need for orientation — a significant advantage in clinical applications. As simple as using a pen.

Easy to Use.
Exceptional in Technology.

We make application easy — even when the underlying technology is more advanced than usual.

Our solution unites deep expertise, precision engineering, and close collaboration with leading clinical experts.

Profound Expertise
Years of experience in ophthalmology
Precision Engineering
Highest technological standards
Clinical Expertise
Close collaboration with leading experts
International Patent Protection
Germany
2024
Europe
2024
USA
2025

Technical data

Laser Diode laser
Laser class 4
Power 8 Watt
Pulse length 100 µs to 60 s / CW
Pulse pause 100 µs to 60 s / SP
Aiming beam red
Fiber coupling A.R.C. Laser - 300 µm
Dimensions H x W x D 17,4 cm x 14,2 cm x 16,3 cm
Weight 1,53 kg
Operation Colour-Touch Display
Power supply Battery-mode or mains operation

Special functions for glaucoma treatment

Energy and time counter in count-down or count-up mode
Voice output µCPC every 10 s or 10 J
Metronome function - acoustic signal at 1 s or 1 J intervals
